Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.92 gallons

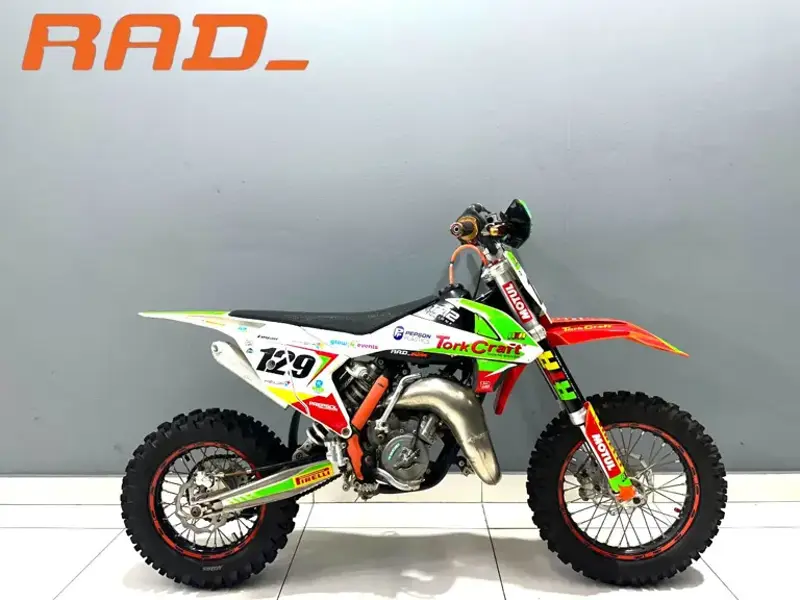

Full 2017 KTM 65 SX Specifications
Colours
Orange/white/black
Ground Clearance (in.)
11.0 inches
Ground Clearance (mm)
280 mm
Seat Height (in.)
29.5 inches
Seat Height (mm)
750 mm
Wheelbase (in.)
44.8 inches
Wheelbase (mm)
1,137 mm
Dry Weight (kg)
53
Dry Weight (lbs.)
116.8 pounds
Fuel Capacity (gal.)
0.92 gallons
Fuel Capacity (l)
3.50 litres
Bore x Stroke (in,)
1.8 x 1.6 inches
Bore x Stroke (mm)
45.0 x 40.8 mm
Displacement (cc)
64.85 cc
Displacement (ci)
3.96 cubic inches
Engine Type
Single cylinder, two-stroke
Engine Detail
Reed intake.
Fuel System
Carburettor. Mikuni TMX
Engine Lubrication
Mixture oil lubrication
Ignition
AET digital EMS
Starter
Kick
Clutch
Wet, multi-disc clutch, Formula hydraulics
Final Drive
Chain
Gearbox
6-speed
Primary Drive
14:48. Primary drive: 23:75 straight cut spur gear.
Wheel Travel - Front (in.)
8.5 inches
Wheel Travel - Front (mm)
215 mm
Wheel Travel - Rear (in.)
10.6 inches
Wheel Travel - Rear (mm)
270 mm
Frame Type
Central-tube frame with double-cradle
Suspension - Front
WP upside-down ? 35 mm
Suspension - Rear
WP shock absorber
Rake
25.5°
Brakes - Front Diameter (in.)
7.8 inches
Brakes - Front Diameter (mm)
198 mm
Brakes - Rear Diameter (in.)
6.3 inches
Brakes - Rear Diameter (mm)
160 mm
Brakes - Front
Single disc. Four-piston calipers. Wave brake discs.
Brakes - Rear
Single disc. Two-piston calipers. Wave brake discs.
Rims
Black anodized, aluminum rims
