Key Specifications
Engine
In-line four, four-stroke
Weight
226.0 kg / 498.2 lbs
Fuel Capacity
19.00 litres / 5.02 US gallons
Advertisement

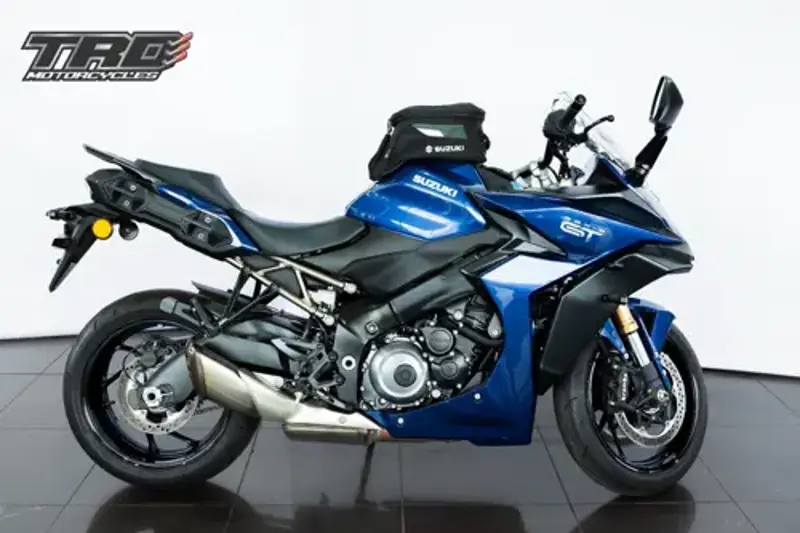

Full 2022 Suzuki GSX-S1000GT Specifications
Comments
3 ride modes. Traction control. Cruise control. Windscreen.
Colours
Metallic Reflective Blue, Glass Sparkle Black
Warranty
12 months unlimited mileage
Storage
Saddle bags
Ground Clearance (mm)
140 mm
Ground Clearance (in.)
5.5 inches
Seat Height
810 mm / 31.9 in.
Wheelbase
1460 mm / 57.5 in.
Height
1215 mm / 47.8 in.
Length
2140 mm / 84.3 in.
Width
825 mm / 32.5 in.
Oil Capacity (Quarts)
3.49 US quarts
Oil Capacity (l)
3.30 litres
Fuel Capacity
19.00 litres / 5.02 US gallons
Coolant Capacity
3.00 litres (0.79 US gallons)
Wet Weight
226.0 kg / 498.2 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
61.01 cubic inches
Displacement (cc)
999.8 cc
Bore x Stroke (mm)
73.4 x 59.0 mm
Bore x Stroke (in,)
2.9 x 2.3 inches
Engine Detail
Titanium valves
Fuel System
Injection. Ride-by-Wire throttle bodies
Compression Ratio
12.2:1
Engine Lubrication
Wet sump
Exhaust
Stainless steel, 4-2-1
Ignition
Electronic ignition (Transistorized)
Spark Plug
NGK CR9EIA-9 or DENSO IU27D
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Wet, multi-plate type. Suzuki Clutch Assist.
Final Drive
Chain (final drive)
Gearbox
6-speed
Number of Chain Links
116
Primary Drive
Constant mesh
Sprocket
17/45 (front/rear)
Fork Tube Size (in.)
1.7 inches
Fork Tube Size (mm)
43 mm
Frame Type
Twin-spar aluminum
Suspension - Front
Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, single shock, coil spring, oil damped
Rake
25.0°
Seat
Passenger seat can be replaced by a color-matched solo tail cowl.
Trail
100 mm / 3.9 in.
Instrumentation
LCD multifunction instrument panel
Lighting system
LED lights
Brakes - Front
Double disc. ABS. Brembo, 4-piston.
Brakes - Rear
Single disc. ABS. Nissin, 1-piston.
Brake Fluid Type
DOT 4
Tyre Pressure - Front
36 PSI (2.5 Bar or 250 kPa)
Tyre Pressure - Rear
42 PSI (2.9 Bar or 290 kPa)
Tyres - Front
120/70-ZR17
