Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
132.4 kW / 180 hp @ 12500 rpm
Torque
112.7 Nm / 11.5 kgf-m @ 10000 rpm
Weight
190 kg / 418.8 lbs
Fuel Capacity
18 Litres / 4.0 US gal
Advertisement

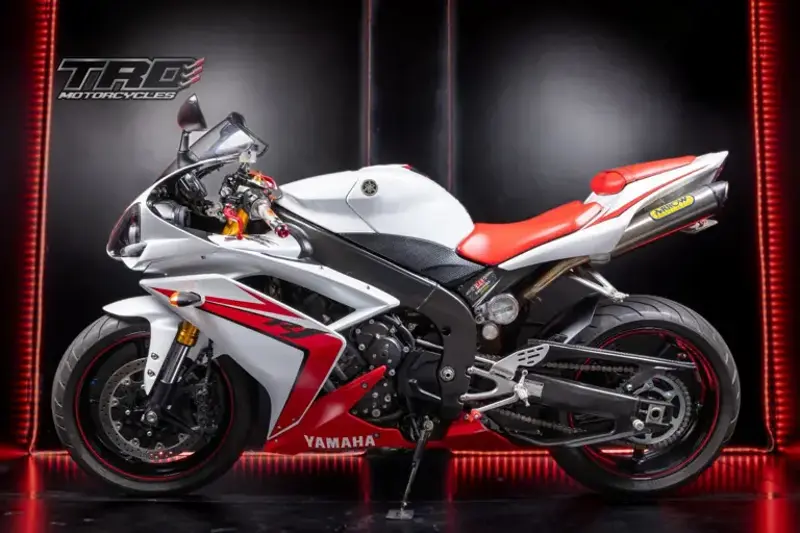

Full 2008 Yamaha YZF 1000 R1 Specifications
Year
2008
Make Model
Yamaha YZF1000 R1
Seat Height
835 mm / 32.9 in
Wheelbase
1415 mm / 55.7 in
Ground Clearance
135 mm / 5.3 in
Height
1110 mm / 43.7 in
Length
1110 mm / 43.7 in
Width
720 mm / 28.3 in
Wet Weight (kg)
190
Dry Weight (kg)
177
Dry Weight
177 kg / 389.4 lbs
Fuel Capacity
18 Litres / 4.0 US gal
Wet Weight
190 kg / 418.8 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
77 X 53.6 mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Fuel Induction
Fuel Injection with YCC-T and YCC-I
Ignition
TCI (Transistor Controlled Ignition)
Lubrication
Wet sump
Spark Plug
NGK, CR9EK
Starter
Electric
Clutch
Cable-operated multiplate wet slipper clutch.
Final Drive
#530 O-ring chain
Gear Ratios
1st 38/15 (2.533) / 2nd 33/16 (2.063) / 3rd 37/21 (1.762) / 4th 35/23 (1.522) / 5th 30/22 (1.364) / 6th 33/26 (1.269)
Transmission / Drive
6 Speed
Frame Type
Deltabox V aluminium aluminium, twin spar
Suspension - Front
43mm inverted telescopic fork w/adjustable preload, compression damping, rebound damping;
Suspension - Rear
Single shock w/piggyback reservoir; adjustable for hi-/lo-speed compression damping, rebound damping, spring preload
Rake
24°
Trail
102 mm / 4.0 in
Wheel Travel - Rear
120 mm / 4..7 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
2 x 310mm discs 6 piston calipers
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/50 ZR17
