2016 Yamaha YZF 1000 R1 Specifications

Sport

Advertisement
No images available
Tap to enlarge

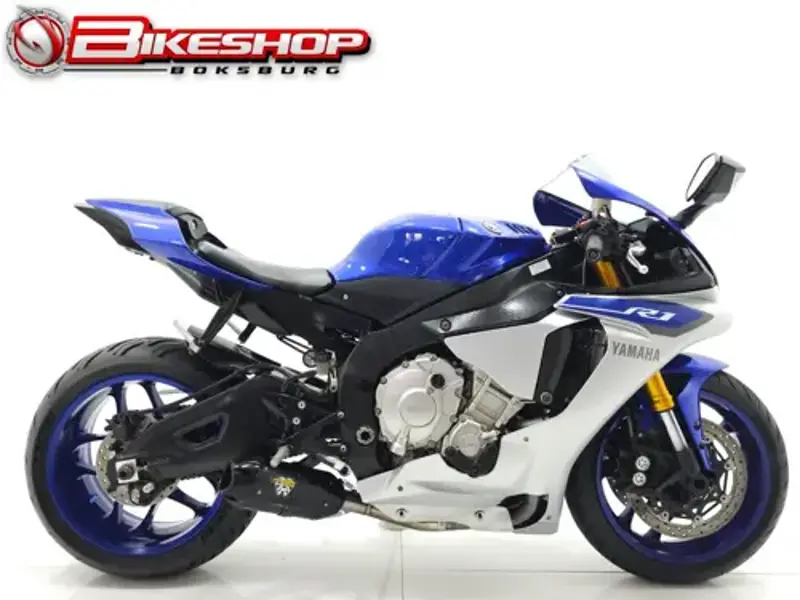

2016 Yamaha YZF 1000 R1 Overview

The 2016 Yamaha YZF 1000 R1 is a sport motorcycle built around 998 cc of displacement. Under the tank sits a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 13.0:1. 2016 Yamaha YZF 1000 R1 delivers 147.1 kW @ 13500 rpm of peak power and 112.4 Nm @ 11500 rpm of torque. From a practical standpoint, the 2016 YZF 1000 R1 tips the scales at 199 kg, carries a 17-litre fuel tank, offers a seat height of 830 mm and spans a 1419 mm wheelbase. Scroll down for the complete 2016 Yamaha YZF 1000 R1 spec sheet covering every technical detail from suspension travel to tyre sizes.

2016 YZF 1000 R1 - Pros & Cons

Strengths

  • Strong power output: 2016 Yamaha YZF 1000 R1 makes 147.1 kW @ 13500 rpm with 112.4 Nm @ 11500 rpm of torque - competitive figures for its class.

Considerations

  • Tall seat height: The 830 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.

Owner Experiences & Common Issues

General ownership notes

The 2016 Yamaha YZF 1000 R1 has built a reputation for solid everyday reliability when serviced to schedule. As with any motorcycle of this era, documented service history is the single biggest indicator of long-term reliability when buying used.

YZF 1000 R1 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2016 Yamaha YZF 1000 R1, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained YZF 1000 R1 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any YZF 1000 R1. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

2016 Yamaha YZF 1000 R1 - Frequently Asked Questions

What engine does the 2016 Yamaha YZF 1000 R1 have?
The 2016 Yamaha YZF 1000 R1 uses a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. engine with 998 cc of displacement. It is liquid cooled.
How much does the 2016 Yamaha YZF 1000 R1 weigh?
The 2016 Yamaha YZF 1000 R1 weighs 199 kg. This is the manufacturer's wet figure.
How much power does the 2016 Yamaha YZF 1000 R1 make?
The 2016 Yamaha YZF 1000 R1 produces 147.1 kW @ 13500 rpm of power and 112.4 Nm @ 11500 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2016 Yamaha YZF 1000 R1?
The 2016 Yamaha YZF 1000 R1 has a 17-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 283-340 km between stops.
Is the 2016 Yamaha YZF 1000 R1 suitable for shorter riders?
The 2016 Yamaha YZF 1000 R1 has a seat height of 830 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2016 Yamaha YZF 1000 R1 have?
The 2016 Yamaha YZF 1000 R1 uses 2x 320mm discs 4 piston calipers, UBS ABS at the front and Single 220mm disc 1 piston caliper, UBS ABS at the rear.
What tyre sizes does the 2016 Yamaha YZF 1000 R1 use?
The 2016 Yamaha YZF 1000 R1 runs 120/70 ZR17 front and 190/55 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2016 Yamaha YZF 1000 R1 have?
The 2016 Yamaha YZF 1000 R1 is fitted with a 6-speed w/multiplate slipper clutch transmission.

Yamaha YZF 1000 R1 Spec Evolution

The Yamaha YZF 1000 R1 was produced across 13 model years (1998-2021). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification 1998 2001 2003 2005 2008 2014 2015 2016 2017 2018 2019 2020 2021
Max Power 148.8 hp / 109.5 kW @ 10000 rpm 148.8 hp / 109.5 kW @ 10000 rpm 152 hp / 110.8 kW @ 10500 rpm 171.3 hp / 126 kW @ 12500 rpm 132.4 kW / 180 hp @ 12500 rpm 133.9 kW / 182 hp @ 12500 rpm 147.1 kW / 200.0 PS @ 13500 rpm 147.1 kW / 200.0 PS @ 13500 rpm 147.1 kW / 200.0 PS @ 13500 rpm 147.1 kW / 200.0 PS @ 13500 rpm 147.1 kW / 200.0 PS @ 13500 rpm 147.1 kW / 197 hp @ 13500 rpm 147.1 kW / 197 hp @ 13500 rpm
Wet Weight 192 kg / 423 lbs 192 kg / 423 lbs 192 kg / 423 lbs 185 kg / 407.8 lbs 190 kg / 418.8 lbs 206 kg / 454 lb 199 kg / 439 lbs 199 kg / 439 lbs 199 kg / 439 lbs 199 kg / 439 lbs 199 kg / 439 lbs 203 kg / 448 lbs 203 kg / 448 lbs
Dry Weight 177 kg / 390.2 lbs 177 kg / 390.2 lbs 175 kg / 389.5 lbs 172 kg / 379 lbs 177 kg / 389.4 lbs 177 kg / 389.4 lb - - - - - - -
Engine Detail Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Top Speed 277.2 km/h / 172.2 mph 277.2 km/h / 172.2 mph 277.5 km/h / 172.4 mph 296.1 km/h / 184 mph 287.7 km/h 280.9 km/h - - - - - - -
Seat Height 813 mm / 32.3 in 813 mm / 32.3 in 813 mm / 32.3 in 833 mm / 32.3 in 835 mm / 32.9 in 835 mm / 32.8 in 830 mm / 32.7 in 830 mm / 32.7 in 830 mm / 32.7 in 830 mm / 32.7 in 830 mm / 32.7 in 861 mm / 33.9 in 861 mm / 33.9 in
Fuel Capacity 18 Litres / US 4.7 gal 18 Litres / 4.7 gal 18 Litres / 4.7 gal 18 Litres / 4.7 gal 18 Litres / 4.0 US gal 18 Litres / 4.8 gal 17 Liters / 4.5 gal 17 Liters / 4.5 US gal 17 Liters / 4.5 US gal 17 Liters / 4.5 US gal 17 Liters / 4.5 US gal 17 Liters / 4.5 US gal 17 Liters / 4.5 US gal
Frame Type Aluminium, twin spar Aluminium, twin spar Aluminium, twin spar Deltabox V aluminium aluminium, twin spar Deltabox V aluminium aluminium, twin spar Deltabox V aluminium - - - - - - -

Key Specifications

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Power

147.1 kW / 200.0 PS @ 13500 rpm

Torque

112.4 Nm / 11.5 kg-m @ 11500 rpm

Top Speed

N/A

Weight

199 kg / 439 lbs

Fuel Capacity

17 Liters / 4.5 US gal

Advertisement

Full 2016 Yamaha YZF 1000 R1 Specifications

Year 2016
Make Model Yamaha YZF 1000 R1
Max Power 147.1 kW / 200.0 PS @ 13500 rpm
Max Torque 112.4 Nm / 11.5 kg-m @ 11500 rpm
Displacement 998 cc / 60.9 cu-in
Engine Detail Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke 79.0 x 50.9 mm
Compression Ratio 13.0:1
Cooling System Liquid cooled
Engine Management YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, CCU & SCU
Fuel Induction Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Lubrication Wet sump
Starter Electric
