Full Specifications
General
Year
2015 - 16
Make Model

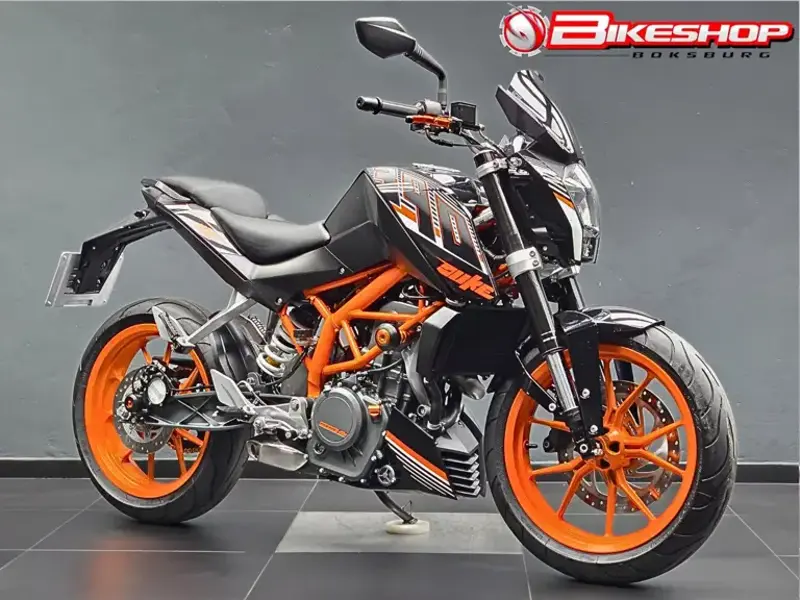

KTM 390 Duke
Dimensions
Seat Height
800 mm / 31.4 in
Wheelbase
1367 mm / 53.8 in
Ground Clearance
172 mm / 6.8 in
Weights & Capacities
Dry Weight
139 kg / 306 lbs
Fuel Capacity
11 L / 2.9 US gal / 2.4 Imp gal
Maximum Load / GVWR
335 kg / 739 lbs
Oil Capacity
1.6 L / 1.7 US qt / 1.4 Imp qt, SAE 15W/50
Performance
Max Power
32 kW / 43.5 hp @ 9500 rpm
Max Torque
35.3 Nm / 3.6 kg-m / 26 ft-lb @7000rpm
Engine
Displacement
373.4 cc / 22.7 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Bore x Stroke
89 x 60 mm
Compression Ratio
12.8:1
Cooling System
Liquid Cooled
Fuel Induction
Bosch electronically controlled injection
Fuel Reserve
1.5 L / 1.6 US qt / 1.3 Imp qt
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 2 Eaton pumps
Spark Plug
Bosch VR 5 NE
Starter
Electric
EV Specifics
Battery Capacity
FTZ-9, 12V 8Ah, maintenance free
Drivetrain
Clutch
Wet multi-disc clutch, Brembo hydraulics
Final Drive
Chain 5/8 x 1/4" X Ring
Final Drive Ratio
15:45
Gear Ratios
1st 12:32 / 2nd 14:26 / 3rd 19:27 / 4th 21:24 / t5th 23:22 / 6th 25:21
Primary Drive Ratios
30:80
Transmission / Drive
6 Speed, claw shifted
Chassis
Frame Type
Steel trellis
Suspension - Front
WP inverted fork ø 43 mm
Suspension - Rear
WP monoshock
Steering Head Angle
65°
Trail
100 mm / 3.8 in
Wheel Travel - Front
150 mm / 5.9 in
Wheel Travel - Rear
150 mm / 5.9 in
Wheels & Brakes
Brakes - Front
Single 300 mm disc, 4 piston radial caliper
Brakes - Rear
Single 230 mm disc, 1 piston floating caliper
Tyres - Front
110/70 - ZR17 M/C 54W TL, Metzeler SPORTEC MS
Tyres - Rear
150/70 - ZR17 M/C 66W TL, Metzeler SPORTEC MS
