Key Specifications
Engine
In-line four, four-stroke
Power
138 kW / 185.1 hp @ 12000rpm
Torque
117 Nm / 11.9 kgf-m / 86.3 lb.ft @ 10000rpm
Top Speed
290 km/h / 180.2 mph
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

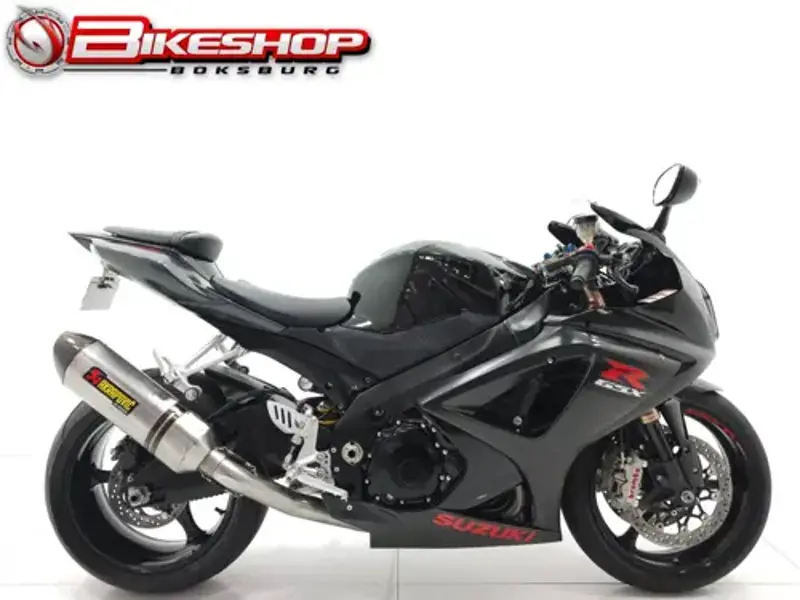

Full 2007 Suzuki GSX-R 1000 Specifications
Year
2007
Colours
Blue/White, Black/Orange, Yellow/Silver
Make Model
Suzuki GSX-R 1000
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Seat Height
810 mm / 31.9 in.
Wheelbase
1415 mm / 55.7 in.
Ground Clearance
130 mm / 5.1 in.
Height
1130 mm / 44.5 in
Length
2045 mm / 80.5 in
Width
720 mm / 28.3 in
Dry Weight
172 kg / 379 lbs.
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Wet Weight
192 kg / 423 lbs
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
Displacement
998.6 cc / 60.9 cub. in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Fuel System
Injection
Bore x Stroke
73.4 x 59 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Engine Lubrication
Wet Sump
Engine Oil Specification
Synthetic, 10W/40
Exhaust
4 into 2, stainless steel
Fuel Consumption
5.5 L/100 km / 18.1 km/l / 42.8 US mpg / 51 Imp mpg
Fuel Induction
Electronic Fuel Injection with four 44mm throttle bodies
Ignition
Electronic ignition, Transistorized
Lubrication
Wet sump
Spark Plug
NGK, CR9EIA-9
Starter
Electric
Clutch
Hydraulically-actuated multiplate wet clutch.
Final Drive
#530 chain
Gear Ratios
1st 2.562 / 2nd 2.052 / 3rd 1.714 / 4th 1.500 / 5th 1.360 / 6th 1.269:1
Gearbox
6-speed
Transmission / Drive
6 Speed, constant mesh
Frame Type
Aluminium, twin spar
Suspension - Front
Inverted telescopic, coil spring, oil damped, adjustable spring preload
Suspension - Rear
Link type, coil spring, gas/oil damped, adjustable spring preload
Rake
24°
Trail
98 mm / 3.9 in.
Wheel Travel - Front
125mm / 4.9 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Brakes - Front
2 x 310 mm discs 4 piston caliper
Brakes - Rear
Single 220 mm disc
Tyres - Front
120/70 ZR17
Tyres - Rear
190/50 ZR17
Wheels
Cast aluminium alloy, 3 spoke
