Key Specifications
Engine
In-line four, four-stroke
Power
136.1 kW / 182.5 hp @ 12000rpm
Torque
117 Nm / 11.9 kg fm / 86.3 lb.ft @ 10000rpm
Top Speed
299 km/h / 185.8 mph
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

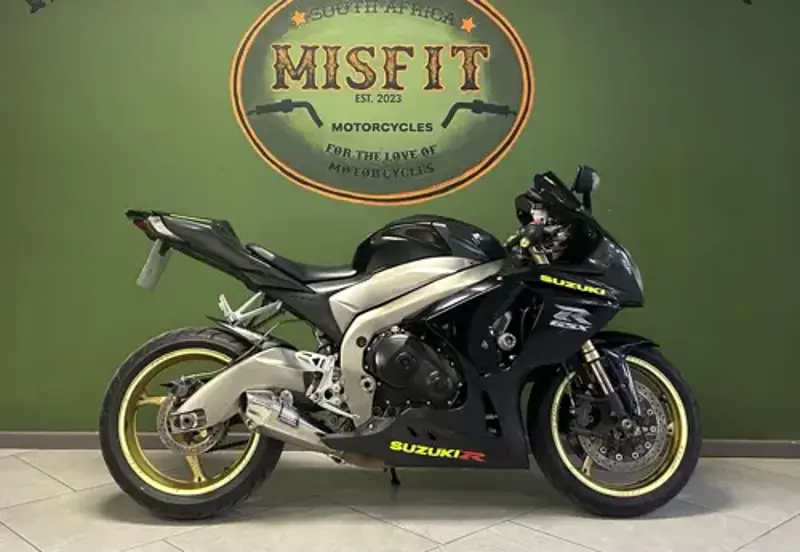

Full 2011 Suzuki GSX-R 1000 Specifications
Year
2011
Colours
Metallic Triton Blue, Glass Spash White, Solid Black, Metallic Mat Titanium Silver
Warranty
12 Month Limited Warranty
Storage
20L
Seat Heigth -Alternate (mm)
825 mm
Seat Heigth -Alternate (in.)
32.5 inches
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
810 mm / 31.9 in.
Wheelbase
1405 mm / 55.3 in.
Ground Clearance
130 mm / 5.1 in.
Height
1130 mm / 44.5 in
Length
1130 mm / 44.5 in
Width
720 mm / 28.3 in
Oil Capacity (Quarts)
0.05 quarts
Oil Capacity (l)
0.70 litres
Dry Weight
112 kg / 246.9 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal / 3.8 Imp gal
Wet Weight
205 kg / 452 lbs
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
CO2
58.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
998.6 cc / 60.9 cub. in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Fuel System
Injection
Bore x Stroke
74.5 x 57.3 mm
Compression Ratio
12.8:1
Cooling System
Liquid cooled
Engine Lubrication
Wet sump
Engine Oil Specification
Synthetic, 10W/40
Exhaust
4 into 2, stainless steel
Fuel Consumption
2.50 litres/100 km (40.0 km/l or 94.09 mpg)
Fuel Induction
Fuel Injection
Fuel Reserve
1.50 litres / 0.40 gallons
Ignition
Electronic ignition Transistorized
Lubrication
Wet sump
Spark Plug
NGK, CR9EIA-9
Starter
Electric
Valve System
4
Clutch
Hydraulically-actuated multiplate wet clutch.
Final Drive
Chain, DID50VAZ, 114 links
Gear Ratios
1st 2.562 / 2nd 2.052 / 3rd 1.714 / 4th 1.500 / 5th 1.360 / 6th 1.269:1
Gearbox
6-speed
Primary Drive
Chain, DID50VAZ, 114 links
Transmission / Drive
6 Speed, constant mesh
Frame Type
Aluminium, twin spar
Suspension - Front
Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, coil spring, oil damped
Rake
23.9°
Seat
20L
Trail
98 mm / 3.9 in.
Wheel Travel - Front
125mm / 4.9 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
Analog tachometer with LCD speedometer. LCD readouts include odometer, dual trip meters, reserve trip meter, clock, coolant temperature/oil pressure warning indicator, gear position indicator, lap timer/stopwatch, S-DMS setting indicator and bar-g
Lighting system
12V 35/35w
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 310 mm Discs 4 piston caliper
Brakes - Rear
Single 220 mm disc
Rims
Steel
Tyres - Front
120/70 ZR17 M/C (58W), tubeless
Tyres - Rear
190/50 ZR17 M/C (73W), tubeless
Wheels
Cast aluminium alloy, 3 spoke
