Key Specifications
Power
119.5 kW / 162 hp @ 10800 rpm
Torque
120 Nm / 12.2 kgf-m / 88.5 ft -lb @ 8500rpm (RAM air)
Top Speed
291 km/h / 181 mph
Fuel Capacity
18 Litres / 4.8 US gal / 4.0 Imp gal
Advertisement

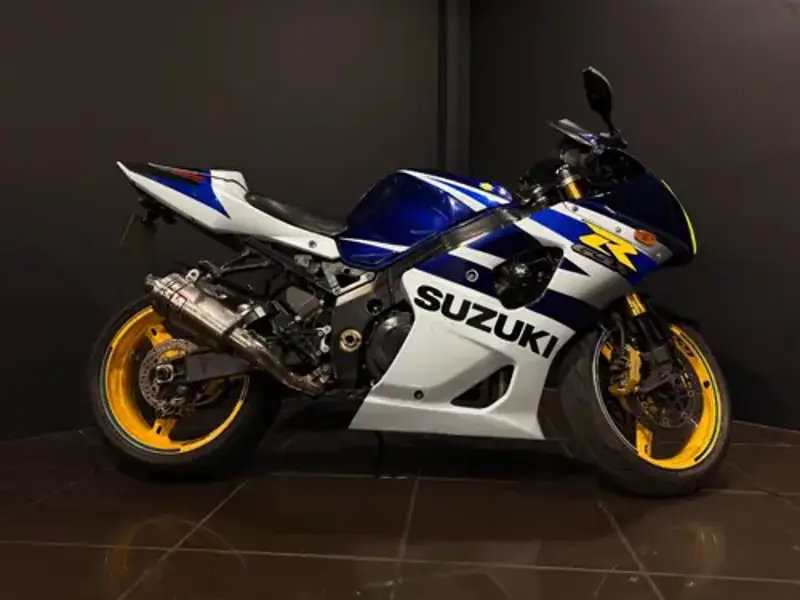

Full 2004 Suzuki GSX-R 1000 Specifications
Year
2004
Colours
Blue/white, Silver, Black/Orange
Make Model
Suzuki GSX-R 1000
Seat Height
820 mm / 32.3 in.
Wheelbase
1410 mm / 55.5 in.
Ground Clearance
130 mm / 5.1 in.
Height
1133 mm / 44.6 in
Length
2045 mm / 80.5 in
Width
715 mm / 28.1 in
Dry Weight
168 kg / 370 lbs.
Fuel Capacity
18 Litres / 4.8 US gal / 4.0 Imp gal
Oil Capacity
3.2 Litres / 3.4 US qt / 2.8 Imp qt
Stroke
4
Fuel Control
DOHC
Engine Type
In-line four
Displacement
988 cc / 60.3 cub. in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Fuel System
Injection
Bore x Stroke
73 x 59 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Exhaust
4 into 1, Stainless steel
Fuel Consumption
5.5 L/100 km / 18.3 km/l / 43 US mpg / 51 Imp mpg
Fuel Induction
Electronic Fuel Injection with four 42 mm throttle bodies
Ignition
Electronic ignition, Transistorized
Lubrication
Wet sump
Spark Plug
NGK, CR9EIA-9
Starter
Electric
Valve System
4
Clutch
Cable-operated multiplate wet clutch
Final Drive
#525 Chain, 110 links
Final Drive Ratio
2.470 (42/17)
Gear Ratios
1st 2.687 / 2nd 2.052 / 3rd 1.681 / 4th 1.450 / 5th 1.304 / 6th 1.208:1
Gearbox
6-speed
Primary Drive Ratios
1.553 (73/47)
Transmission / Drive
6 Speed, constant mesh
Frame Type
Aluminium, twin spar
Suspension - Front
Inverted telescopic, coil spring, oil damped, spring preload fully adjustable, rebound and compression damping force fully adjustable.
Suspension - Rear
Link type, oil damped, coil spring, spring preload fully adjustable, rebound damping force and compression damping force fully adjustable.
Rake
24°
Trail
96 mm / 3.8 in.
Wheel Travel - Front
125 mm / 4.9 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Brakes - Front
Radial master cylinder. Radial mount, 4-piston calipers, 300 mm dual disc.
Brakes - Rear
Single 2-piston caliper, 220 mm disc
Tyres - Front
120/70 ZR17 M/C, (58W) tubeless
Tyres - Rear
190/50 ZR17 M/C (73W), tubeless
Wheels
Cast aluminium, 3 spoke
