Key Specifications
Power
110.3 kW / 148 hp @ 12800 rpm
Torque
86.3 Nm / 8.8 kgf-m / 64 ft-lb @ 11200 rpm
Top Speed
270.7 km/h / 168 mph
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Advertisement

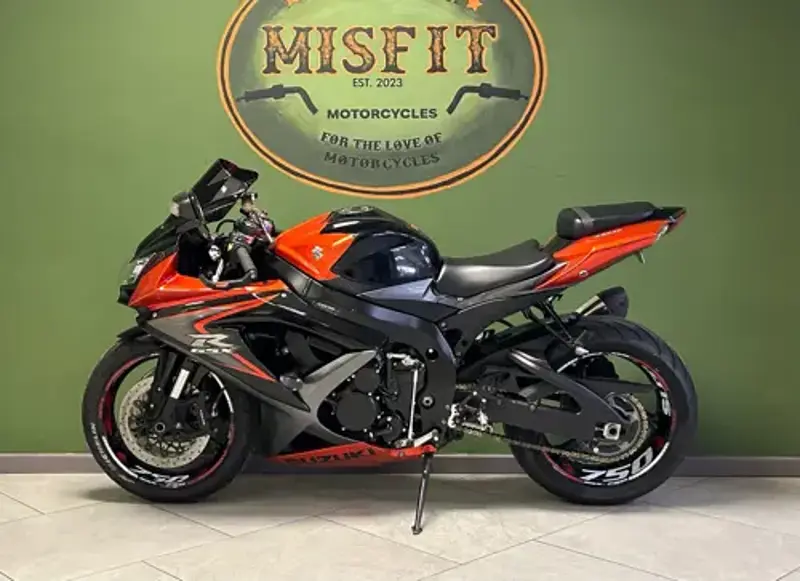

Full 2008 Suzuki GSX-R 750 Specifications
Year
2008
Colours
Blue/White, Orange/Black, Matte Black/Black
Make Model
Suzuki GSX-R 750
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
810 mm / 31.8 in.
Wheelbase
1390 mm / 54.7 in.
Ground Clearance
130 mm / 5.1 in
Height
1125 mm / 44.6 in.
Length
2040 mm / 80.4 in.
Width
715 mm / 28.5 in.
Dry Weight
163 kg / 359 lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Wet Weight
198 kg / 419 lbs
Stroke
4
Fuel Control
DOHC
Engine Type
In-line four
Displacement
749 c / 45.7 cub. in.
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Fuel System
Injection
Bore x Stroke
70 x 48.7 mm
Compression Ratio
12.5:1
Cooling System
Liquid. High capacity large trapezoidal-shaped radiator which includes compact cooling fan assembly designed for improved air flow.
Engine Lubrication
Wet Sump
Engine Oil Specification
Synthetic,10W/40
Exhaust
Suzuki Advanced Exhaust System (SAES) with under engine muffler layout and Suzuki Exhaust Tuning (SET) system.
Fuel Consumption
5.5 l/100 km / 18.3 km/l / 43 US mpg / 51 Imp mpg
Ignition
Digital DC-CDI
Lubrication
Wet sump
Spark Plug
NGK, CR9E
Starter
Electric
Clutch
Wet, multiple discs
Final Drive
Chain, RK525ROZ5Y, 116 links
Gear Ratios
1st 2.79 / 2nd 2.05 / 3rd 1.71 / 4th 1.50 / 5th 1.35 / 6th 1.20:1
Gearbox
6-speed
Transmission / Drive
6 Speed, constant mesh
Frame Type
Ultra-lightweight frame built entirely of aluminum alloy castings.
Suspension - Front
Showa inverted 41 mm cartridge front forks fully adjustable for high and low speed compression, spring preload, and rebound damping
Suspension - Rear
Showa 41mm aluminum alloy rear shock with a 16mm rod diameter are fully adjustable for high and low speed compression, spring preload and rebound damping
Rake
23.8°
Trail
97 mm / 3.8 in.
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Brakes - Front
2 x 310 mm Discs, radial-mount opposed-four-piston Tokico 4 piston calipers
Brakes - Rear
Single 220 mm disc, Tokico 2 piston caliper
Rims - Front
3.8 x 17
Rims - Rear
5.5 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Aluminum, 3 spoke
