Key Specifications
Engine
In-line four, four-stroke
Torque
86.2 Nm (8.8 kgf-m or 63.6 ft.lbs) @ 11200 Revolutions"
Weight
190.0 kg / 418.9 lbs
Fuel Capacity
17.00 litres / 4.49 US gallons
Advertisement

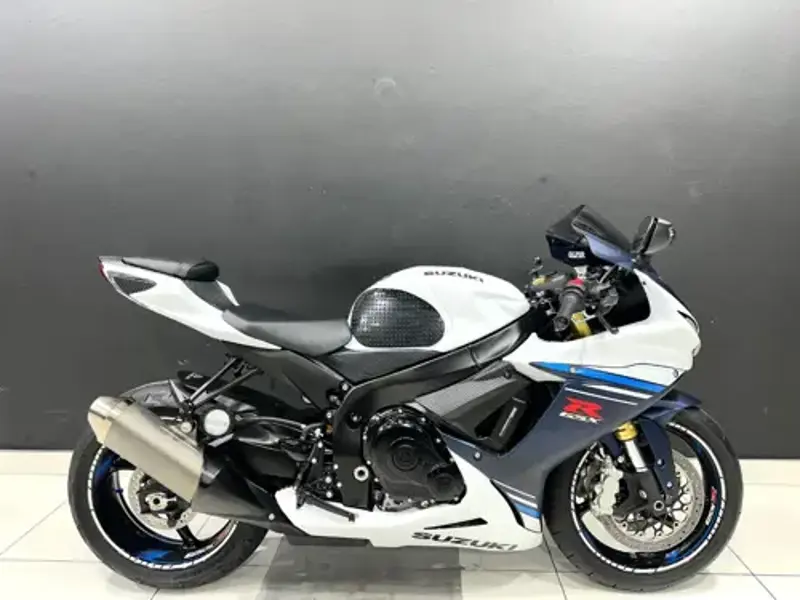

Full 2023 Suzuki GSX-R 750 Specifications
Comments
Small windscreen. Drive modes.
Colours
Pearl Brilliant White/Metallic Matte Stellar Blue, Glass Sparkle Black/Glass Matte Mechanical Gray
Warranty
12 month unlimited mileage limited warranty.
Ground Clearance (in.)
5.1 inches
Ground Clearance (mm)
130 mm
Storage
Seat Heigth -Alternate (mm)
Seat Heigth -Alternate (in.)
Seat Height
810 mm / 31.9 in.
Wheelbase
1390 mm / 54.7 in.
Height
1135 mm / 44.7 in.
Length
2030 mm / 79.9 in.
Width
710 mm / 28.0 in.
Dry Weight (kg)
Weight balance - Rear
Dry Weight (lbs.)
Weight balance - Front
Oil Capacity (Quarts)
3.59 US quarts
Oil Capacity (l)
3.40 litres
Fuel Capacity
17.00 litres / 4.49 US gallons
Coolant Capacity
Wet Weight
190.0 kg / 418.9 lbs
Stroke
Fuel Reserve (l)
Fuel Reserve (gal.)
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
45.77 cubic inches
Displacement (cc)
750.0 cc
CO2
Bore x Stroke (mm)
70.0 x 48.7 mm
Bore x Stroke (in,)
2.8 x 1.9 inches
Engine Detail
Titanium alloy valves
Fuel System
Injection. Suzuki Dual Throttle Valve fuel injection
Compression Ratio
12.5:1
Emissions
Engine Lubrication
Wet sump
Exhaust
Fuel Consumption
Idle Speed
1000-1200 RPM
Ignition
Transistorized
Oil Filtration
Spark Plug
NGK CR9EIA-9, DENSO IU27D
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Wet, multi-plate
Final Drive
Chain (final drive)
Gearbox
6-speed
Number of Chain Links
116
Primary Drive
Constant mesh
Sprocket
15/43 (front/rear)
Fork Tube Size (in.)
1.6 inches
Fork Tube Size (mm)
41 mm
Trail (in.)
Trail (mm)
Frame Type
Twin-spar aluminum cradle
Suspension - Front
Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, single shock, coil spring, oil damped
Rake
Seat
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
Analog tachometer and LCD panel with speed, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS, and gear position indicators
Lighting system
Vertically stacked high- and low-beam 65W halogen bulbs
Brakes - Rear Diameter (mm)
Brakes - Rear Diameter (in.)
Brakes - Front Diameter (mm)
Brakes - Front Diameter (in.)
Brakes - Front
Double disc. Brembo 4-piston.
Brakes - Rear
Single disc. Nissin-1 piston.
Brake Fluid Type
DOT 4
Rims
Three-spoke cast aluminum alloy
Tyre Pressure - Front
33 PSI (2.3 Bar or 230 kPa)
Tyre Pressure - Rear
36 PSI (2.5 Bar or 250 kPa)
Tyres - Front
120/70-ZR17
Tyres - Rear
